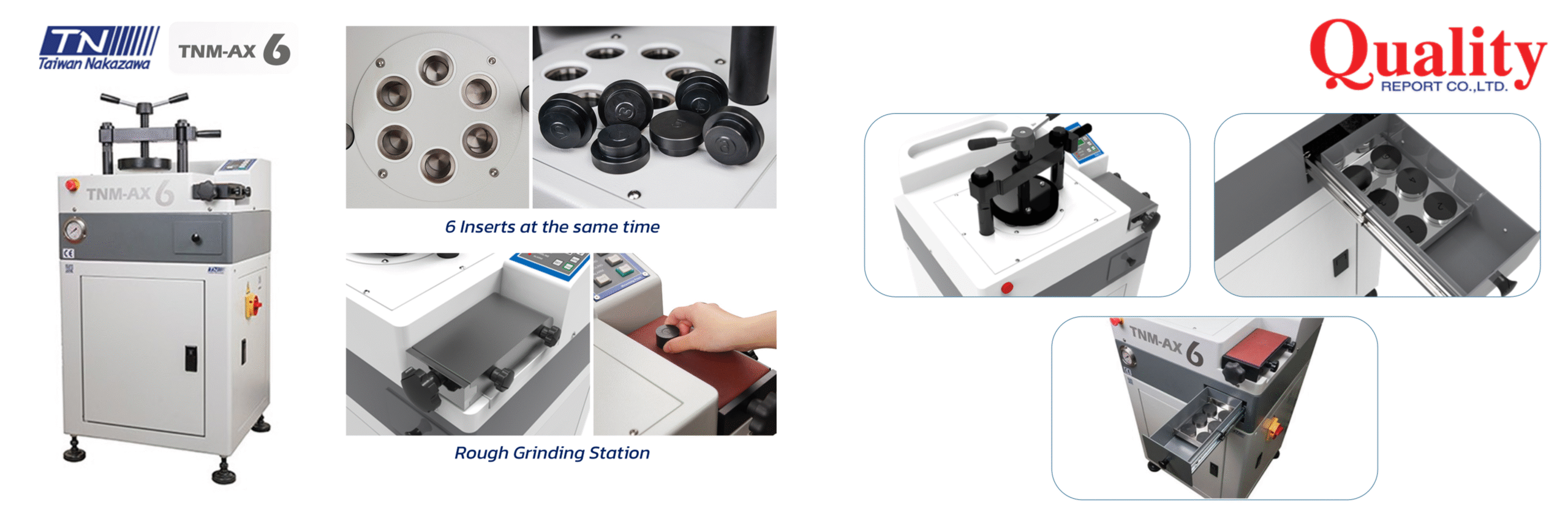

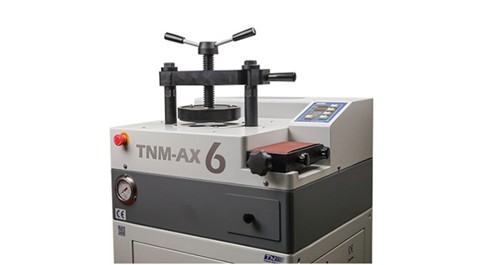

TAIWAN Nakazawa TNM-AX6 (Mounting Press Machine)
เครื่องหล่ออัดชิ้นงานแบบ 6 หลุม
รายละเอียดสินค้า
| form | floor-standing | |
|---|---|---|
| Mounting parameters | size | Ø32mm |
| greatest pressure | Inside the mold tube：1625psi(114kgf/cm^2)；actuation pressure：130kgf/cm^2 | |
| pressure control system | Uncontrollable, hydraulic system | |
| Filling mechanism | Rotary push down | |

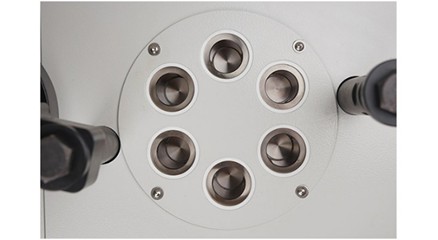

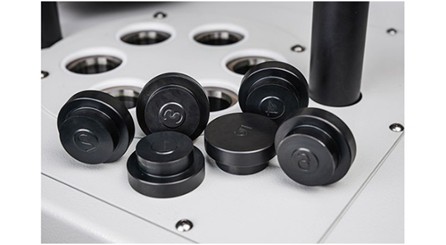

| quantity | 1-6(single MAX high：30mm | |
| temperature | 110ºC-200ºC | |
| Panel function | production mode | Fully automatic pressure compensation |
| Function setting | 1. Forming time 2. Cooling time 3. Forming temperature | |
| Extra features | 1. Automatic shutdown 2. Buzzer mode selection A. On B. Off C. Buzzer for 30 seconds | |
| Security Mechanism | Safe temperature protection | The system cannot operate until the safe temperature is reached |
| emergency safety switch | After the emergency switch is pressed, all functions stop | |
| Overload protection | The machine has a complete overload protection mechanism | |
| supply | electricity | three phase 220V/ 380V 60/50Hz |
| heating power | 3000W | |
| total machine power | 3500W | |
| size | W540*D552*H1300mm | |
| weight | 120kg | |
| Cooling water | Inlet pipe size 3/8″ inch (3 pipes) | |
| Outlet size 5/8″ inch (5 pipes) | ||

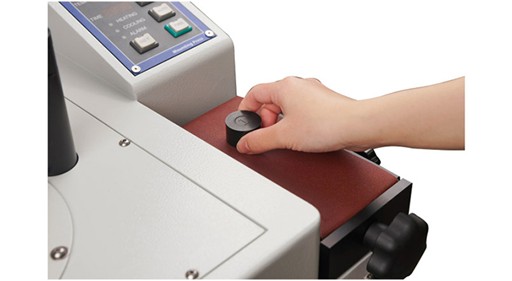

| Standard equipment | Dispensing scoop*1; funnel*1; water inlet pipe 2M*1; drain pipe 2M*1; release agent*1; #240 abrasive paper 4 sheets; grinding belt table*1; Hot gloves*2; upper mold scraper*1 | |
