TAIWAN Nakazawa TNC-AS Series (Cutting Machine)
เครื่องตัดชิ้นงานละเอียด
รายละเอียดสินค้า
| ITEM | Model/Specification Description | |||
|---|---|---|---|---|
| TNC-200AS | TNC-230AS | TNC-255AS | ||
| Transmission system | form | High efficiency induction motor belt drive mechanism | ||
| Cutting Motor | 1 HP (60/50Hz) | 2 HP (60/50Hz) | 3HP (60/50Hz) | |
| Rotational Speed | 2,990 (60Hz) | 2,990 (60Hz) | 2,750 (60Hz) | |
| (RPM) | 2,960 (50Hz) | 2,960 (50Hz) | 2,720 (50Hz) | |
| Cutting sheet specifications | Outside diameter of cutting disc | Ø200 mm | Ø230 mm | Ø255 mm |
| Inside diameter of cutting disc | Shaft diameter Ø31.75(*Ø25.4) | Shaft diameter Ø31.75(*Ø25.4) | Shaft diameter Ø31.75(*Ø25.4) | |

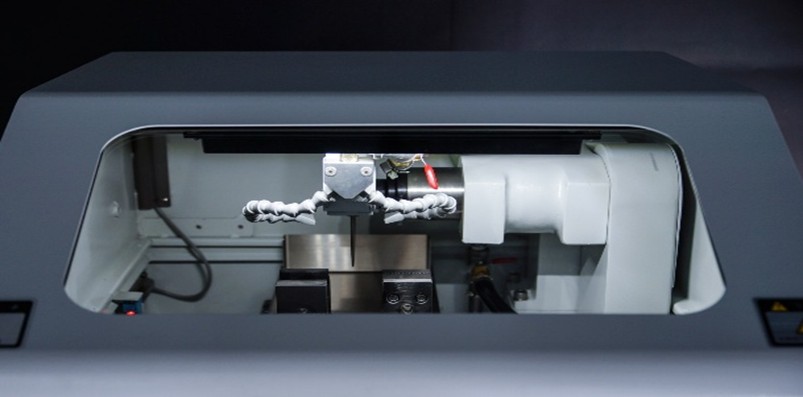

| Sample clamping | Fixture type | Thread locking fixture | ||
| Opening distance adjustment | Slider to adjust the distance between movable jaws | |||
| Locking method | Thread locking, tool adding force | |||
| Opening (mm) | Maximum 72 mm | |||
| X Movement (mm) | Maximum 39 mm (handwheel adjustment) | |||
| Cutting Height (mm) | 62 mm | 82 mm | ||
| Total swing length | 488 mm | |||

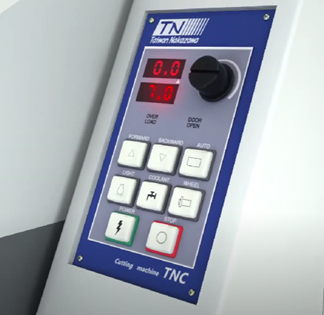

| Control System | Panel form | Waterproof IP55 Physical Hard Button Panel | ||
| Features | LED digital display board: 1. Feed speed mm/min 2. Load current ampere value A 3. Life record 4. Intelligent feed reciprocating times | |||
| Automatic feed speed adjustment | ||||
| Manual automatic function start and stop | ||||
| Intelligent feed function setting (optional) | ||||
| Cooling system function start and stop | ||||
| Complete the three modes of buzzer reminder: 1. Turn off 2. Unlimited buzzer reminder 3. 30 seconds buzzer reminder | ||||
| Magnetic filter system function start and stop (optional) | ||||
| Feeding device | Tool setting method | Visual or (optional laser tool setting device) | ||

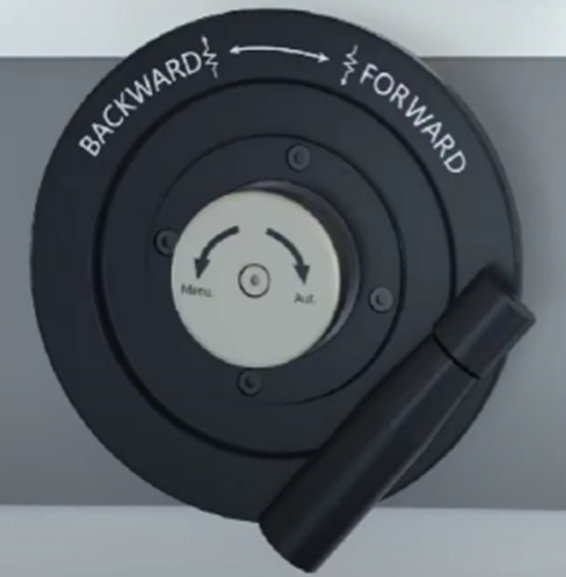

| Manual advance and retreat | Use advance hand to lose | |||
| Feeding Speed | Freely set the feed speed and cutting end point, automatic feed | |||
| Auto retract | After the worktable reaches the cutting end point, it will automatically return to the cutting origin at full speed, and then beep | |||
| Smart feed | Optional (Smart current reciprocating cutting, please refer to the description of smart feed) | |||
| Manual/automatic switch | Patented manual automatic integrated knife feed and manual input (switching time is about 1 second) | |||
| Workbench stroke | 230 mm | |||
| Lighting device | Type | IP67 high brightness LED lamps | ||
| Safety function | System self-protection function | In addition to passive overload protection, self-protection function (load upper limit) can be set | ||
| Current overload | The feed function stops and the worktable returns to the cutting origin | |||
| emergency button | In an emergency, press the emergency stop button to stop all functions | |||
| Observation window | Safety tempered glass | |||
| Door safety device | Lifting type, pneumatic support anti-pinch | |||
| After closing the hatch correctly, the spindle function cannot be started | ||||
| Spindle action stops when opening hatch during operation | ||||
| Overload protection | Set the overload current and motor overload protection device | |||
| Cooling device | Volume | 50 L | ||
| Circulating Pump | 1/8 HP | |||
| Circulating water | 48 L/min | |||
| Cooling water hose | 2 | |||
| Cleaning hose | 1 | |||
| Filter method | Filter and sedimentation tank | |||
| Magnetic filter | Optional | |||
| weight | 25 kg | |||
| size | (D) 320 x (W) 500 x (H) 360 mm | |||
| Electricity | AC 220V / 380V 50HZ/60Hz 3P, Power cord length 3,500 mm | |||
| Power | 1,000 W | 1,700 W | 2,500 W | |
| Machine | APPEARANCE | D900*W800*H1300mm | ||
| Weight | 257 kg (220V) | 261 kg (221V) | 264 kg (222V) | |
| 264 kg (380V) | 268 kg (380V) | 271 kg (380V) | ||
| Standard Accessories | Cutting Disc x 2pcs, Coolant oil x 1bottle, Toolbox x 1set | |||
