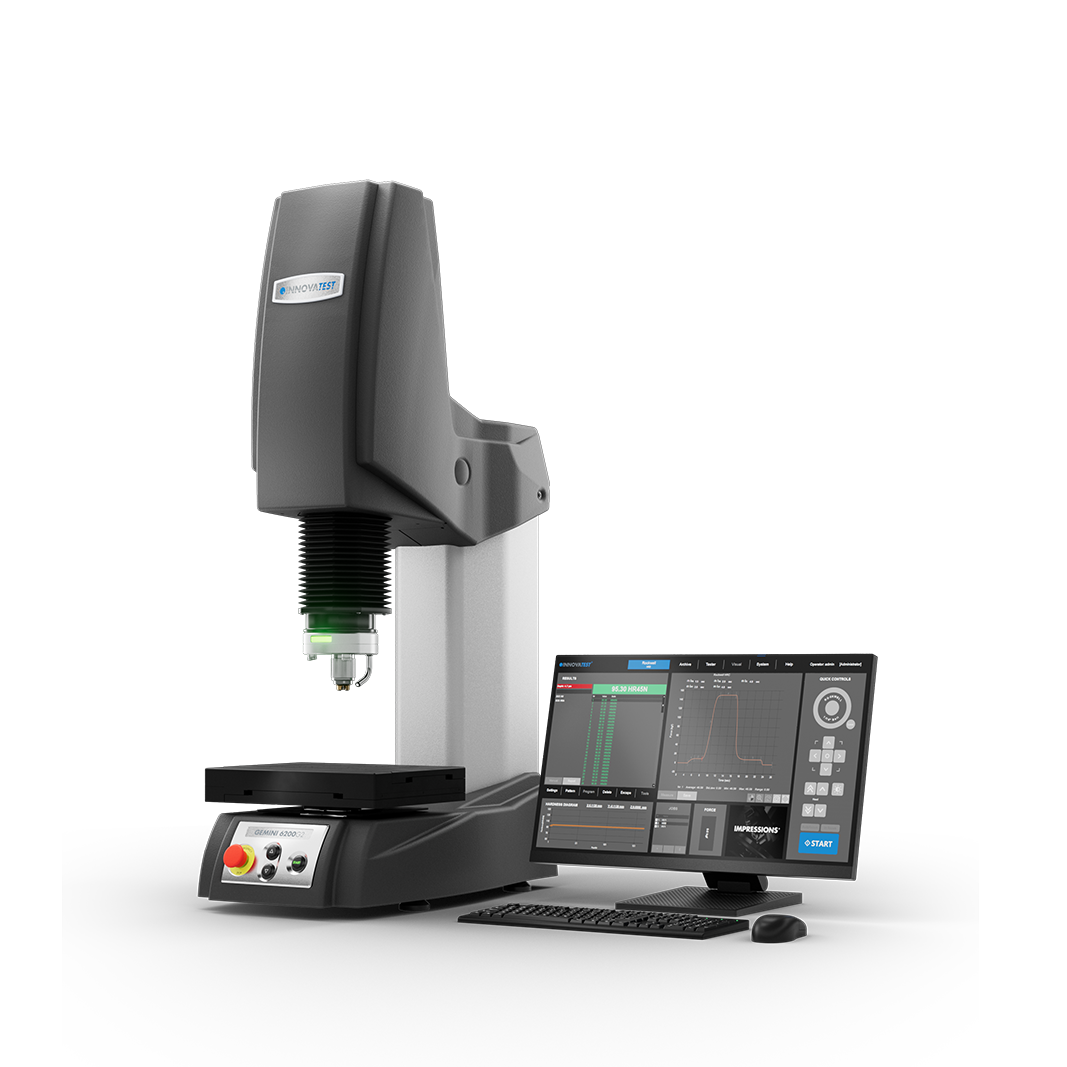

INNOVATEST GEMINI 6200G2
เครื่องทดสอบความแข็งสเกลร็อคเวลล์และบริเนลล์ (ประเภทตะขอเกี่ยว)
รายละเอียดสินค้า
- Scales: Rockwell, Superficial Rockwell, Brinell, HVD/HBD, Plastics & Carbon
- Test Forces: 1kgf – 250kgf (load cell, closed loop force application system)
- Load App.
- System: Fully automatic, Load cell, closed loop, force feedback
- Overview Camera: 13 megapixel stage overview camera, variable field of view
- Display: 24” landscape mode capacitive touchscreen
- Indenters: IRIS™ intelligent indenter system
- Control: Fully integrated system controller, i7 processor, Dual MSSD Raid system storage, or external pc
- Laser: Cross laser positioning system
- Illumination: Multi color LED machine status indicator
- Z-Axis: Descending test head, with collision detection, CNC motorized (T model), ball bearing spindle, with fast up/down & start buttons on front panel
- Stages: Manual or motorized
- Workpiece height.: (S)150 or (T)300mm
- Output: XML, CSV, Certified for Q-DAS (Optional)
- Software: Large choice of software options, features, plug-ins and add-ons, Q-DAS certified
