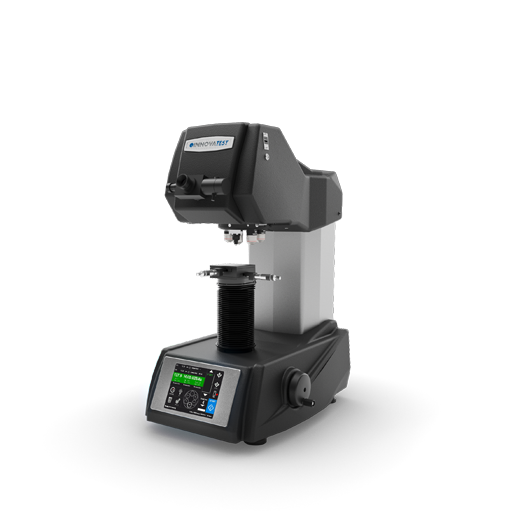

INNOVATEST FALCON 300G2
เครื่องทดสอบความแข็งสเกลไมโครวิคเกอร์ส (แบบอัตโนมัติ)
รายละเอียดสินค้า
- Scales: Micro Vickers, Vickers, Knoop
- Test Forces: 5gf – 2kgf (multi load cell, closed loop)
- Eyepiece: Analogue or electronic digital eyepiece – view via eyepiece and camera simultaneously
- Objectives: 5X, 10X, 20X, 50X, 100X
- 6 Position Turret: 2 indenters, 4 objectives
- Illumination: Power LED
- Control: I-TOUCH™ powerful tester and function control
- Z-Axis: Manually operated, fine adjustable on the side
- XY-Stage: Manual, 100mm X 100mm, travel 25mm X 25mm
- Workpiece Acc.: 150mm (H) X 170mm (D)
- Output: USB
