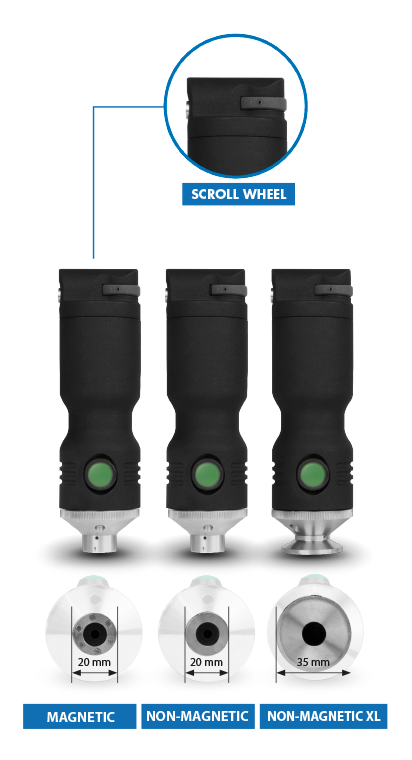

INNOVATEST BIOS – Handheld Brinell Impression Optical Scanner
เครื่องทดสอบความแข็งสเกลบริเนลล์ชนิดสแกนเนอร์พกพา
รายละเอียดสินค้า
- Microscope: Brinell Impression Optical Scanner
- Camera: 5 Megapixels
- Lens: Telocentric 0.6x
- Field of view: Max. 9,50 x 7,12mm
- Dimensions: 160mm x Ø45mm
- Weight: 527gr
- Power supply: USB-2
- Data Output: CSV, MS Solutions Excel, Word, etc.
- Connectivity: USB-2
- Electronic system: High performance embedded controller, i7, MS Windows® 10 operated
- Screen: Landscape mode capacitive touch screen
- Display resolution: 0.1 HBW
- Hardness conversion: HRC

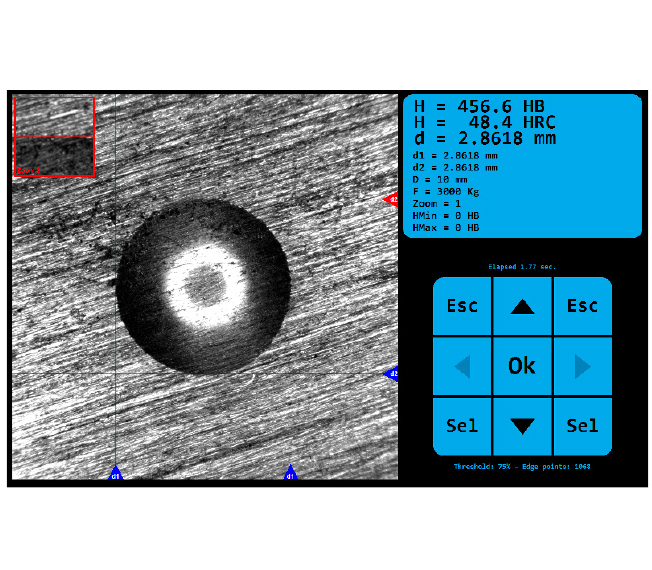

- Software: Integrated database, Measurement for 1mm – 10mm balls with one lens only, Measurement resolution 1µm/step, Precise digital zoom function 1x – 8x, Fast measurement reaction time, Measurements can be edited after storage
