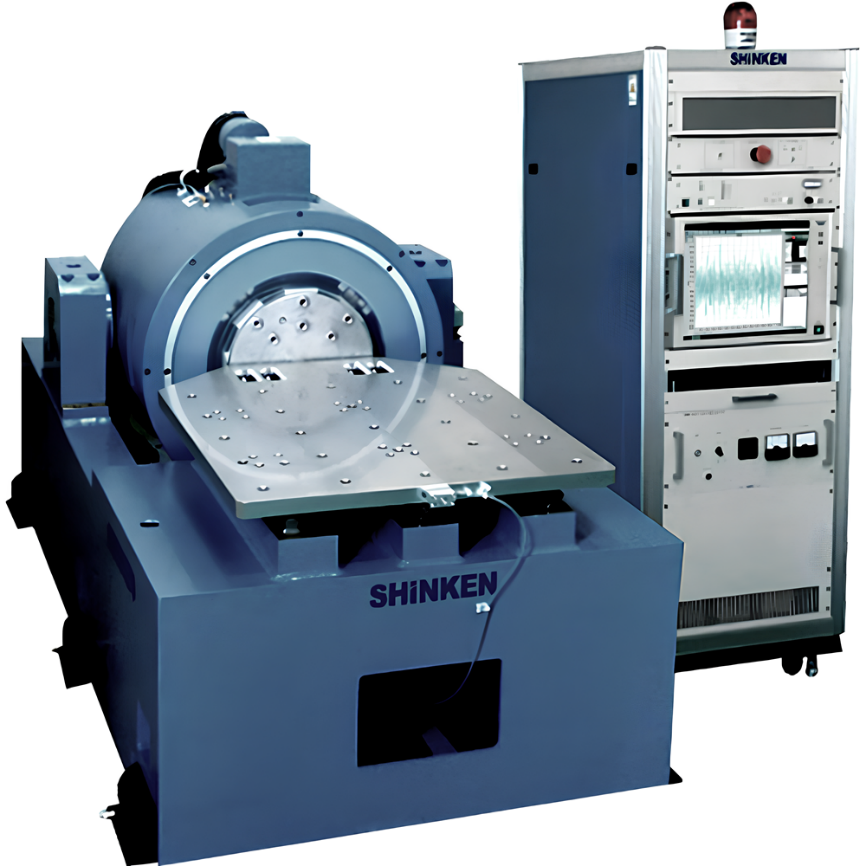

Single – Axis Vibration Test System G-9 Series
เครื่องทดสอบแรงสั่นสะเทือนชนิด 1 แกน
รายละเอียดสินค้า
Suitable for Vibration Tests for Large products
The main features of large, robust Bare Tables and high Eccentric Moment make the G-9 Series Vibration Test Systems suitable mainly for transportation vibration tests for large heavy specimens such as packaged cargos and large automobile parts. With the Aux. Vertical Table and Horizontal table being added, the employment of the optional Geared-Motor for rotating the Vibration Generator’s body and the Aux. Vertical Table UP-DOWN device with 4 cylinders makes a changeover of vibration directions more safe and easy.
คุณสมบัติของสินค้า
HIGHLIGHTS
Test Applications: Seismic, Automobile, Railway, Aerospace, Transportation and Electric & Electronic parts.
Vibration Generator Type: Electro-Dynamic Vibration Test System.
Vibration Direction: Vertical and Horizontal.
Force Output Range: 1kN to 30kN.
Frequency: 2 to 2,000Hz
Auxiliary Table: Vertical table / Horizontal table.
Guide Systems: Mechanical Bearing / Air Bearing / Hydrostatic Bearing.
Cooling Method: Air-cooled
Software: Sine / Random / Shock / RSTD / SoR / RoR / SRS / PSD Simulation
Optional: For Combined Environmental Test Chamber.
Auxiliary Vertical Table Up-Down Device
